‘O’ Ring Leak Detector (OLD) –

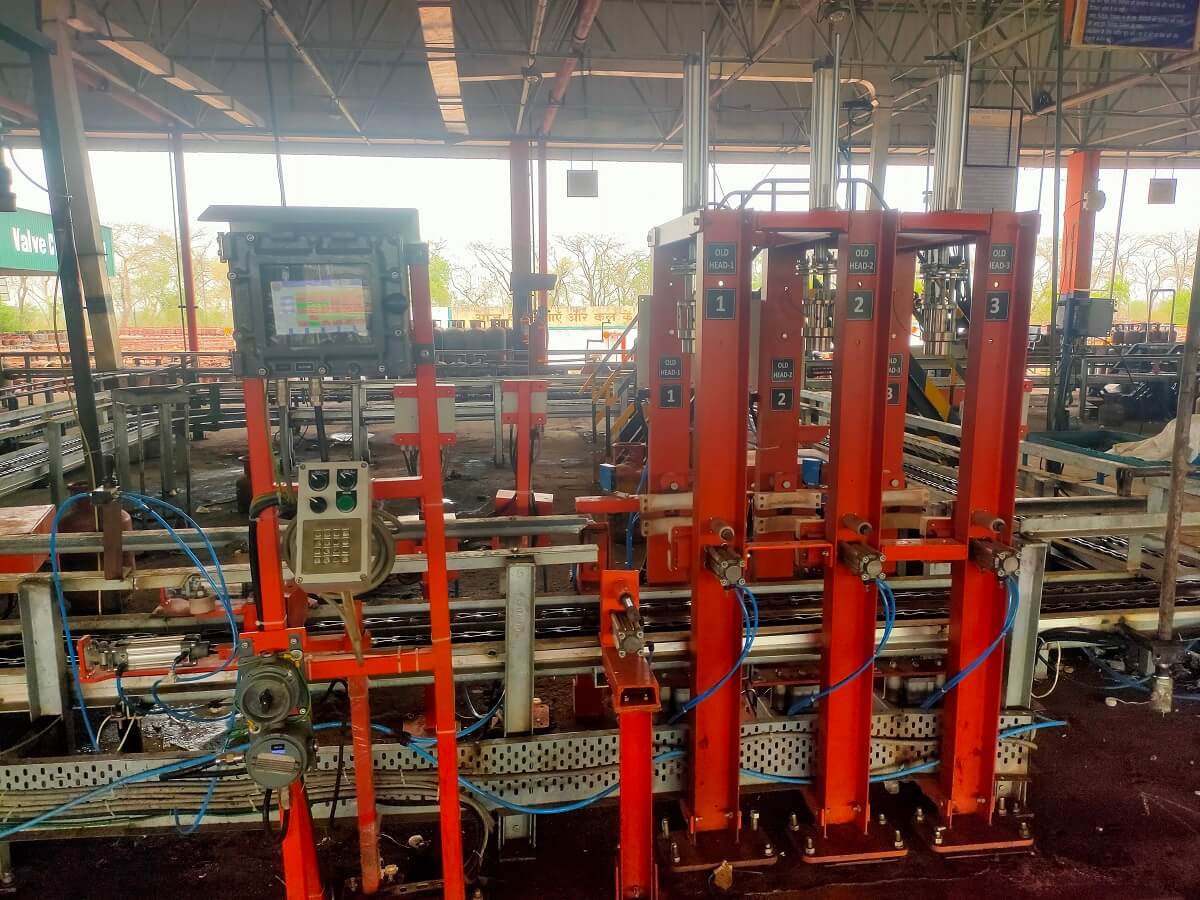

The electronically controlled valve seal tester VST (for center valves only) is an independent unit designed for in-line installation in a chain conveyor. The VST is fully automatic. The test head simulates the end-user regulator, so the unit performs a tightness test of the regulator connection to the cylinder valve (the situation when the cylinder is in use at the end-user).

The tightness test identifies any valve/seal defects with Megawork unique pressure test head and pressure sensor. A leak rate will result in a pressure change. The pressure sensor detects small changes of pressure (rise or drop) in the test head. This change is compared to a preset permitted maximum pressure change. This comparison decides whether the cylinder can be approved or rejected. The pressure test is possible even if the cylinder does not contain gas.

Maximum Safety Level –

• Fully automatic testing of all cylinders (eliminates human errors)
• Fully automatic leak rate testing for periodic verification of the preset leak rate (optional)
• More accurate, reliable, and consistent, detection of leaks due to test heads with narrow tolerances simulating the end-user regulator and due to pressure sensor developed with specific measuring range and very fine division
