Features –

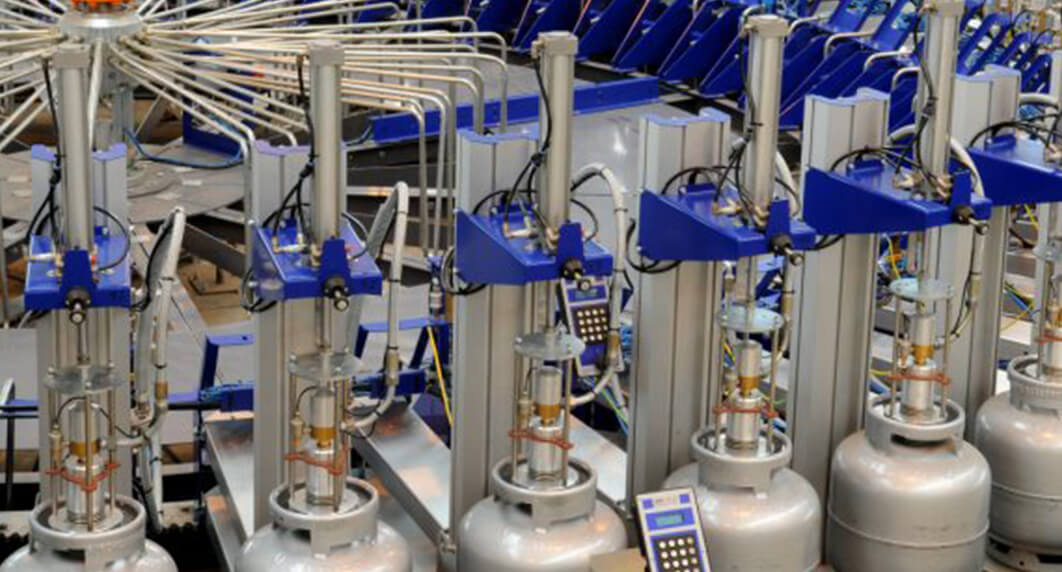

• Our carrousel filling system is designed for filling 12/14.2/19 Kg.
• Capacity for 14.2 Kg Cylinder

6 Point – 400 cylinders per hour.
10 Point – 650 cylinders per hour.
12 Point – 680 cylinders per hour.
24 Point – 1600 cylinders per hour.
36 Point – 2400 cylinders per hour.

• Filling Accuracy; 98% (± 100 gms.)
• Exact Weight Cylinders; 80%
• Resolution 50 gms.
• Verification Interval 10 gms.
• Dual Cutoff Filling System with Coarse and Fine filling.

Capacity: 2400 Cylinders/hour of 14.2 Kg.

Filling Accuracy; 98% (± 100 gms.)

Exact Weight Cylinders; 80%

Features of 36 Point Carousel System-

• Single Inlet, Single Outlet.
• Dual cut off for accurate filling.
• Add on Upstream and Downstream Equipments on present 24 Point Carousel:

Diameter of 24 Point – Carousel is 5940 mm
Diameter of 36 Point – Carousel is 8400 mm

• No change in conveyor layout of 24 Point Carousel.
• Only change required to make Tangential to Radial Inlet and Outlet.
• No additional requirement of expansion of filling shed.
• Conveyor speed to be upgraded to 24-25 meters per minute form Vision System to O Ring Leak Detector.
• Add on Upstream and Downstream Equipments on present 24 Point Carousel:

Check Scale –Add on 2 nos.
Valve/bung Leak Detecto –r Add on 2 Modular Heads.
O Ring Leak Detector – Add on 2 Modular Heads.
Water Bath – No change
Telescopic Conveyors – Add on 1 no. on loading and unloading each.
Vision Reader – 1 no. (if already present then Vision Unit not required.)

• Remote Diagnostics.
• Standard PLC System with open communication International Protocol.
• No Proprietary Electronics Card Systems.
• Concept of Filling is same as 24 Point Carousel System.
• Data Monitoring Facility.
• All Items used in Carousel are of International standard proven brands.
